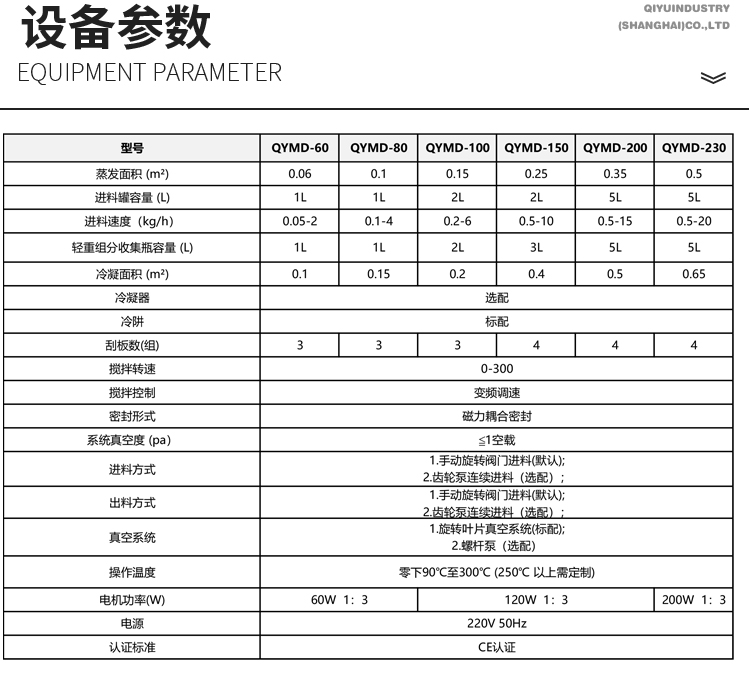

| MODEL | QYMD-60 | QYMD-80 | QYMD-100 | QYMD-150 | QYMD-200 | QYMD-230 |
| Evaporation area(m2) | 0.06 | 0.1 | 0.15 | 0.25 | 0.35 | 0.5 |
| Feed tank capacity (L) | 1L | 1L | 2L | 2L | 5L | 5L |
| Feed speed（kg/h） | 0.05-2 | 0.1-4 | 0.2-6 | 0.5-10 | 0.5-15 | 0.5-20 |

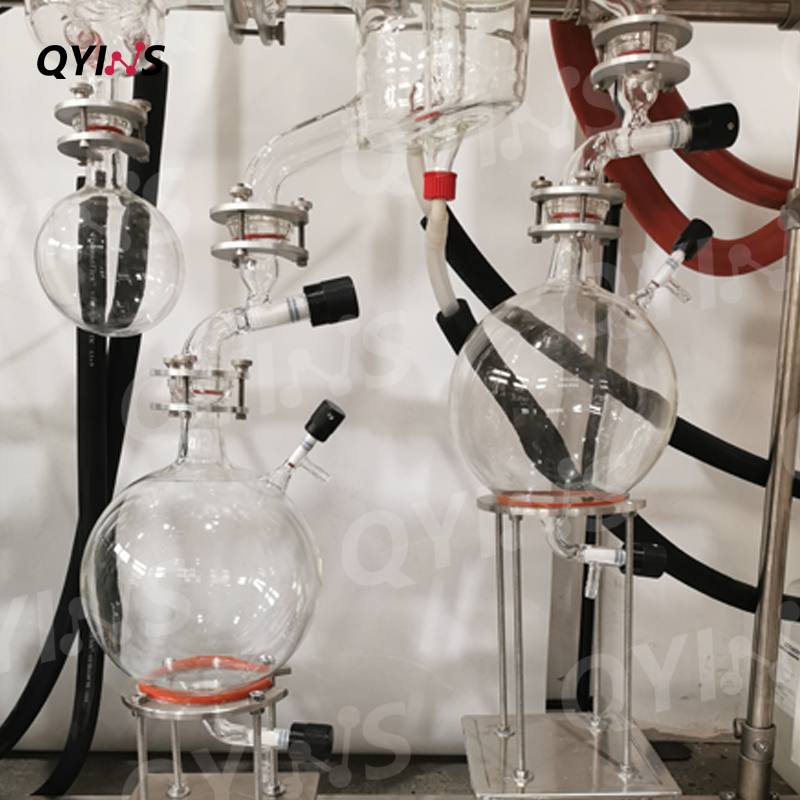

| Capacity of light and heavy fraction collection bottle (L) | 1L | 1L | 2L | 3L | 5L | 5L |
| Condensation area(m2) | 0.1 | 0.15 | 0.2 | 0.4 | 0.5 | 0.65 |
| Condenser | Atching | |||||
| Cold trap | Standard arrangement | |||||
| Number of scraper(group） | 3 | 3 | 3 | 4 | 4 | 4 |
| Stirring speed(rpm) | 0-300 | |||||
| Scaping quality | Composite PTFE scraper | |||||
| System vacuum(pa） | ≦1 No-load | |||||
| Nacuum system | 1.Rotating blade vocuum system(default）; 2.Screw Pump(optional） | |||||
| Working temperature | -90℃ to 300℃ (Above 250℃ need to be customized) | |||||
| Motor power (W) | 60W 1：3 | 120W 1：3 | 200W 1：3 | |||
| Power supply | 220V 50Hz (Voltage can be customized according to customer needs) | |||||
| Certification standard | CE certification | |||||
